Mitutoyo SKU: 06AGR543
Price: €344.58 Excluding VAT

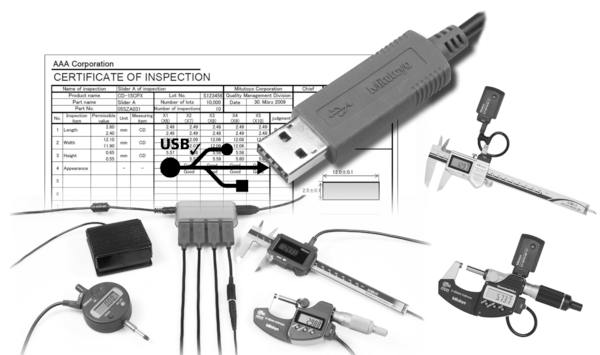

USB-ITPAK Version 3 is software for collecting data from measuring instruments with Digimatic, Digimatic 2 and Digimatic S1 output to Excel by using USB Input Tool Interface, USB Input Tool Direct cables, U-WAVE wireless system and DP-1VA pinter/logger

  • Supports bidirectional serial communication provided by e.g. ID-F indicator, ID-C Indicator and Height Gauge LH-600F/FG

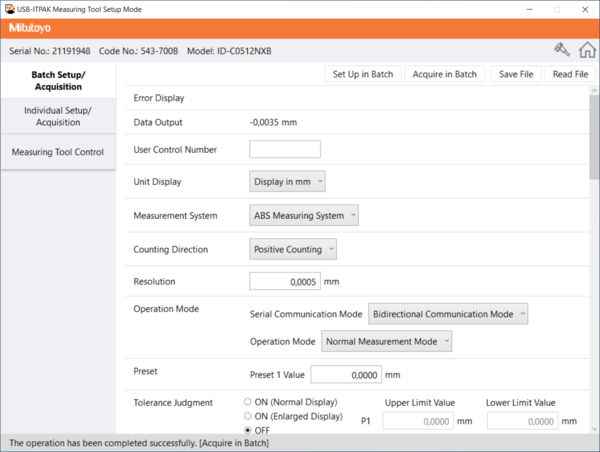

  • Various settings are available like zero set, preset, unit, counting direction, tolerance setting, calibration date setting a.s.o.

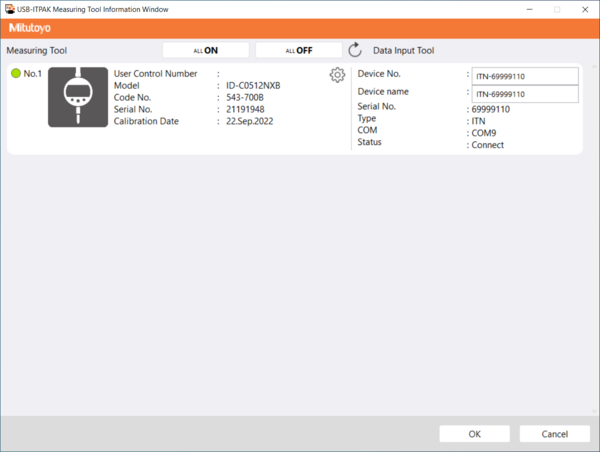

  • Measurement status information can be read like serial number, code number, calibration date, user control number a.s.o.
  • USB-ITPAK Version 3 simple version is available online free of charge
  • Compatible OS Microsoft® Windows® 10 (64 bit) and 11
  • For Microsoft® Excel® version 2010, 2013, 2016 and Microsoft 365
OS compatibility:
Windows® 10 (64bit only), 11
Applicable MS Excel Version:
Excel 2010/2013/2016/2021, Microsoft365
Language for display:
English, German, French, Italian, Spanish, Turkish, Czech, Polish, Hungarian, Swedish, Russian, Japanese, Korean, Simplified Chinese, Traditional Chinese, Dutch, Portuguese
Remarks:
Version 3 can be used for Wireless Communication (U-WAVE and U-WAVE Bluetooth), USB Input Tool Direct Cable, USB-Input Tool No. 264-016-10 and 264-020 and DP-1 VA printer/logger. Supports bidirectional serial communication provided by e.g. ID-F/ ID-C Indicator (2,022 model), LH-600 F/FG and QuantuMike Micrometer (2,024 model).
Delivered:
With license key
Functions:

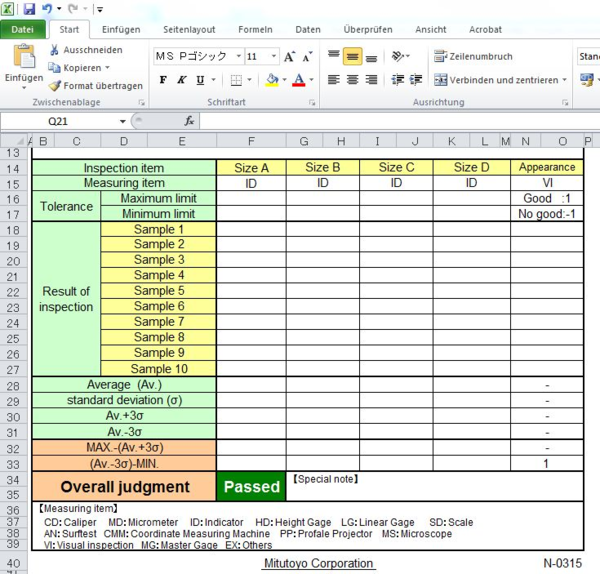

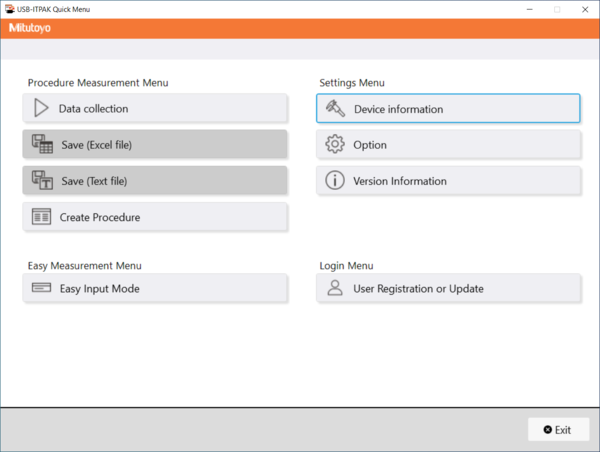

  • Create Microsoft® Excel® input procedures (workbook, worksheet, cell range a.s.o.)
  • Bidirectional communication (Digimatic S1) compatible
  • Information reading of measuring tools (serial number, code number etc.)
  • Settings and operations of measuring tools (preset, power ON/OFF, etc.)
  • Enter measured data in the quick entry mode

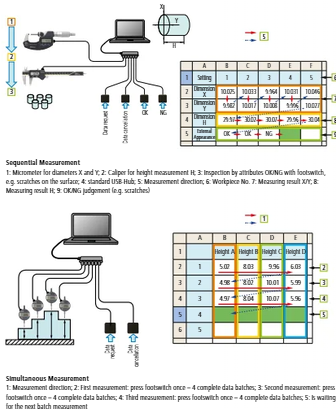

  • Enter measured data in a specified sequence (sequencial mode)
  • Enter measured data all at once (batch mode)
  • Enter measured data individually (individual mode)
  • Automatically enter measurement data periodically
  • Enter a string with your foot
  • Enter measurement data with foot switch, keyboard/mouse, data switch
  • Enter data into an arbitrary application
  • Enter log data from DP-1VA LOGGER
