Mitutoyo SKU: 02AZD880G
Price: €277.11 Excluding VAT

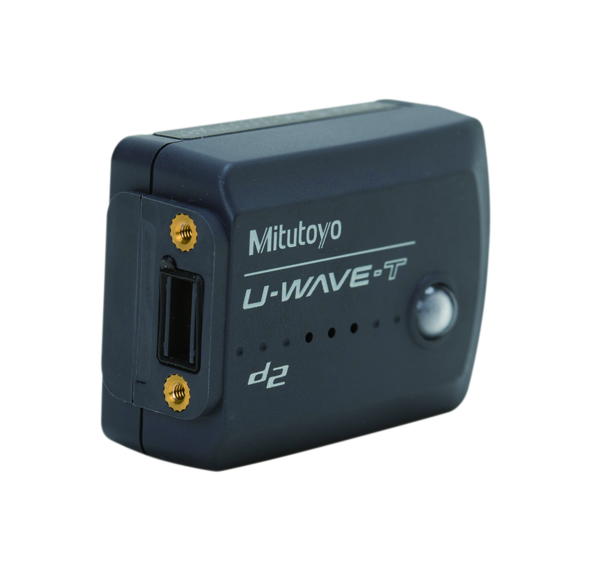

02AZD880G U-WAVE-T, Buzzer Type Wireless Transmitter










U-WAVE-T, Buzzer Type

Wireless Transmitter

Item number: 02AZD880G


DescriptionThe Mitutoyo U-WAVE system enables easy wireless data communication from a measuring tool to a PC using the Digimatic protocol. Measurement workability is improved by eliminating the long and cumbersome data cables usually required and the user-friendly interface allows data to be loaded into any software product that accepts keyboard input, such as Excel* or Notepad.
Features
Wireless communication protocol:
Proprietary (2,4 GHz by original specification based on IEEE 802.15.4)
Modulation method:
DS-SS (Direct Sequence Spread Spectrum)
Measuring Instruments:
Indicator, 3-Point Inside Micrometer,
Carbon Fibre Caliper, Height Gauge, a.s.o
Remarks:
Standard
Data reception
indication:
Buzzer and LED
(green, red, orange)
Communication distance:
Approx. 20 m (within visible range)
Communication speed kbps:
250
Power supply:
Battery CR2032
Communication with measuring tool:
Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification
Communication frequency:
2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval)
Transmission output:
2,5 mW (4 dBm) or below
OS compatibility:
Windows® 2000 Professional (≥SP4),
Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®, Windows® 7 (32bit, 64bit), Windows® 8, 8. 1, 10 (32bit, 64bit), 11
Battery life:
Approx. 400000 transmissions
Delivered:
With 1 battery CR2032, screwdriver
