Mitutoyo SKU: 02AZD810D
Price: €459.04 Excluding VAT

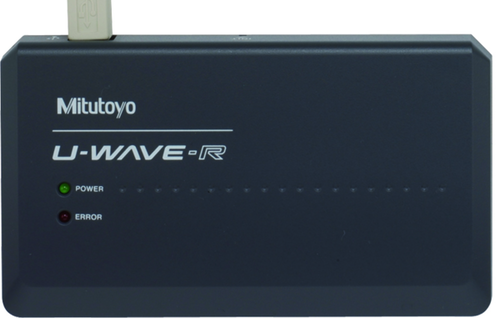

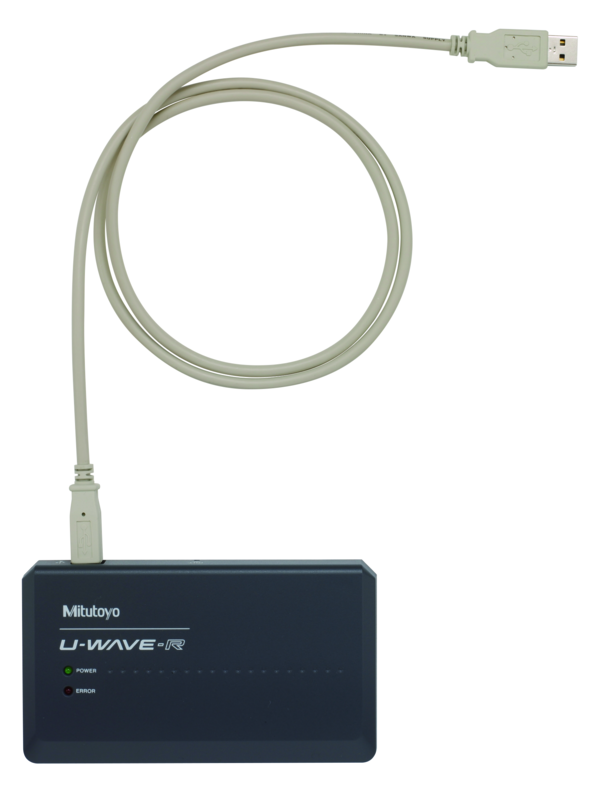

02AZD810D U-WAVE-R Receiver with U-WAVEPAK

Wireless communication protocol:
Proprietary (2,4 GHz by original specification based on IEEE 802.15.4)
Functions:
Reception of measurement data (cancel command, error command)
All band ID scan (investigation of noise level)
Input voltage level fall warning from USB
Modulation method:
DS-SS (Direct Sequence Spread Spectrum)
Remarks:
U-WAVE-R + Software (U-WAVEPAK)
Communication distance:
Approx. 20 m (within visible range)
Number of U-WAVE-R
units that can be
connected to PC:
Up to 16
Communication speed kbps:
250
Power supply:
USB bus power system
Number of U-Wave-T
units that can
be
connected:
Up to 100
Communication with measuring tool:
Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification
Communication frequency:
2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval)
Transmission output:
1 mW (0 dBm) or below
OS compatibility:
Windows® 2000 Professional (≥SP4),
Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®, Windows® 7 (32bit, 64bit),
Windows® 8, 8. 1, 10 (32bit, 64bit),
“Data Collection Macro” for MS Excel (to be used in U-WAVEPAK) does not support MS Excel of 64bit edition.
Delivered:
With USB cable (1m), installation board, tapping screws (2 pcs.)
