Mitutoyo SKU: 02AZD730G
Price: €277.11 Excluding VAT

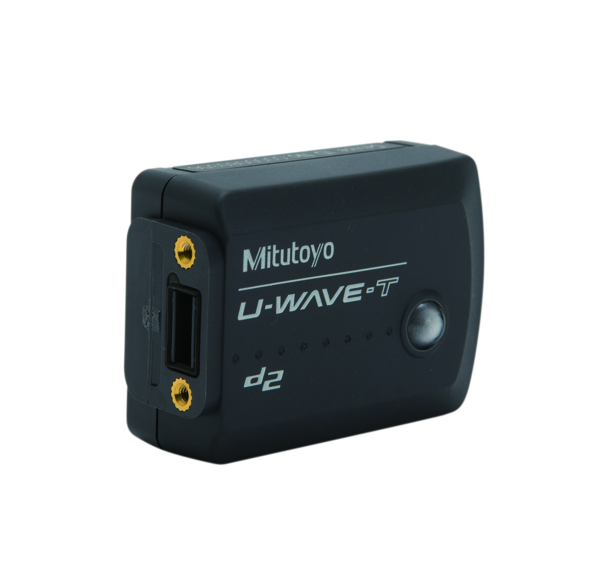

02AZD730G U-WAVE-T, IP67 Type Wireless Transmitter




ip67.eps

U-WAVE-T, IP67 Type

Wireless Transmitter

Item number: 02AZD730G



DescriptionWireless Transmitter
Features
Wireless communication protocol:
Proprietary (2,4 GHz by original specification based on IEEE 802.15.4)
Modulation method:
DS-SS (Direct Sequence Spread Spectrum)
Measuring Instruments:
Indicator, 3-Point Inside Micrometer,
Carbon Fibre Caliper, Height Gauge, a.s.o
Remarks:
IP67
Data reception
indication:
LED (green, red, orange)
Communication distance:
Approx. 20 m (within visible range)
Communication speed kbps:
250
Power supply:
Battery CR2032 x 1 pcs.

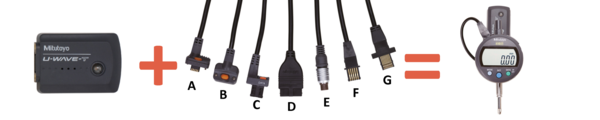

Communication with measuring tool:
Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification
Communication frequency:
2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval)
Transmission output:
2,5 mW (4 dBm) or below
OS compatibility:
Windows® 2000 Professional (≥SP4),
Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®, Windows® 7 (32bit, 64bit), Windows® 8, 8. 1, 10 (32bit, 64bit), 11
Battery life:
Approx. 400000 transmissions
Delivered:
With 1 battery CR2032, screwdriver

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
